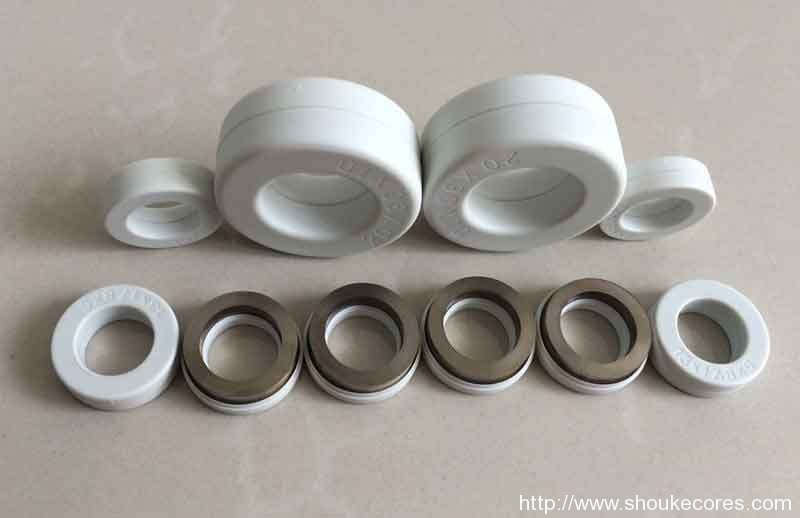

Fe-based amorphous filter inductor cores are provided with good frequency property, AC/DC superposition characteristics and low core loss. And the wide permeability range from 120 µ to 1200 µ . It is a good choice for the inductor, choke and filters in high frequency and AC/DC superposition situation, and with better price than FeNiMo, FeNi and FeSiAl powder cores.
Application
- Car audio choke coils
- PFC corrector inductors
- DMC fillers and smooth output filters
- DC/DC transformer filters
Characteristics:
• High saturation flux density Bs, low Hc, Low loss.
- Excellent Anti DC bias property
- High permeability of 120 to 1200µ, Less wire winding turns.
Performance
| Item | Performance | Item | Performance |
| Saturate induction Bs(T) | 1.56 | Magnetostriction λs | 27×10 -6 |
| Curie temperature Tc（℃) | 400 | Density ρ（g/cm3） | 7.18 |
| Crystallization Tx（℃) | 515 | Resistivity δ（μΩ.cm） | 130 |
| Hardness（Hv） | 960 | Coercivity Hc（A/m) | <4 |
Specification
1) Core for car audio
| Part No. | Core dimension | Finished dimension | AL min. | N | Idc | Lv (min). |
| (mm) | (mm) | Idc=0 | (Turns) | (A) | Idc=Rated | |
| (μH) | (μH) | |||||
| AC061005 | 6.5×9.8×4.5 | 5.1×11.2×5.9 | 0.12 | 50 | 0.3 | 150 |
| AC081205-1 | 8×12×4.5 | 6.3×13.8×6.5 | 0.1 | 50 | 1.5 | 160 |
| AC081205-2 | 8×12×4.5 | 6.3×13.8×6.5 | 0.19 | 38 | 1 | 100 |
| AC091505 | 8.5×15.3×5.0 | 7.4×16.8×6.3 | 0.21 | 36 | 1 | 240 |
| AC101608-1 | 10×16×8.0 | 8.3×18.2×10.3 | 0.13 | 40 | 2 | 150 |
| AC101608-2 | 10×16×8.0 | 8.3×18.2×10.3 | 0.21 | 46 | 2 | 300 |
| AC101608-3 | 10×16×8.0 | 8.3×18.2×10.3 | 0.62 | 27 | 1 | 300 |
| AC101905-1 | 10×18.5×5.0 | 8.0×20.8×6.8 | 0.26 | 35 | 2 | 230 |
| AC101905-2 | 10×18.5×5.0 | 8.0×20.8×6.8 | 0.35 | 43 | 1 | 500 |
| AC111808-1 | 11×18×8.0 | 8.8×19.8×9.7 | 0.55 | 21 | 2 | 180 |
| AC111808-2 | 11×18×8.0 | 8.8×19.8×9.7 | 0.78 | 24 | 1 | 300 |
| AC111810-1 | 11×18×10 | 8.8×19.8×11.9 | 0.2 | 50 | 1 | 400 |
| AC111810-2 | 11×18×10 | 8.8×19.8×11.9 | 0.63 | 26 | 2 | 280 |
| AC111810-3 | 11×18×10 | 8.8×19.8×11.9 | 0.85 | 23 | 1 | 400 |
| AC122008-1 | 12×20×8.0 | 10.6×21.8×10 | 0.3 | 27 | 2 | 190 |
| AC122008-2 | 12×20×8.0 | 10.6×21.8×10 | 0.56 | 25 | 1 | 350 |
| AC122010 | 12×20×10 | 10.6×21.8×12 | 0.84 | 21 | 1.5 | 250 |
2) Core for PFC Choke
| Part No. | Core dimensions | Finished dimensions | AL（Idc=Rated） | Max AT (N x Idc) | ||
| (mm) | (mm) | （μH） | ||||
| A type | B type | A type | B type | |||
| (min) | (min) | (max) | (max) | |||
| AC-002 | 10×16×8.0 | 8.3×18.2×10.3 | 0.3 | 0.1 | 26 | 75 |
| AC-003 | 11×18×10 | 9.1×20×12.2 | 0.39 | 0.13 | 30 | 90 |
| AC-007 | 16×26×10 | 14.2×28.5×12.8 | 0.38 | 0.12 | 42 | 120 |
| AC-010 | 20×32×10 | 18.2×37×13.5 | 0.37 | 0.12 | 54 | 150 |
| AC-015 | 25×40×12.5 | 22.5×42.2×16 | 0.46 | 0.15 | 67 | 200 |
| AC-020 | 40×59×20 | 36×63×24 | 0.6 | 0.2 | 100 | 300 |
