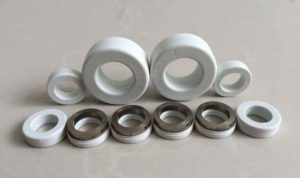

Application:
- Output filter inductor.
- Choke coil for convertor
- PFC choke
Performance:
- Good frequency and temperature characteristics
- Low core loss
- High permeability
Specification:
| Part No. | Core dimensions(mm) | Finished dimensions(mm) | Electronic Parameters | |||||
| ID | OD | H | ID | OD | H | AL(μH) | AT | |
| ACG12A | 12 | 20 | 5 | 9.7 | 22.5 | 8 | 0.085 | 180 |
| ACG12B | 12 | 20 | 8 | 9.7 | 22.5 | 11 | 0.12 | 180 |
| ACG16 | 16 | 26 | 10 | 14.3 | 30.2 | 13.5 | 0.132 | 280 |
| ACG20 | 20 | 32 | 10 | 17.5 | 34.5 | 13.5 | 0.12 | 350 |
| ACG25A | 25 | 40 | 12.5 | 23 | 45 | 16 | 0.15 | 370 |
| ACG25B | 25 | 40 | 15 | 23 | 45,0 | 19 | 0.2 | 370 |
| ACG32 | 32 | 50 | 15 | 29 | 55 | 18 | 0.126 | 470 |
| ACG40 | 40 | 64 | 15 | 37.8 | 67.5 | 19 | 0.16 | 600 |
| ACG50 | 50 | 80 | 20 | 47 | 85,0 | 24 | 0.2 | 730 |
| ACG56 | 56 | 92 | 25 | 53 | 97 | 29 | 0.25 | 800 |
Technical parameter of winding choke:
| Part No | Core dimensions(mm) | Current(A) | L(μH) | AL (μH) | Turns (N) |
| ACG12B | 12×20×8.0 | 3 | 400 | 60 | |
| 5 | 155 | 0.115 | 37 | ||
| 8 | 60 | 23 | |||
| 10 | 40 | 19 | |||
| ACG16 | 16×26×10 | 3 | 1000 | 87 | |
| 5 | 300 | 48 | |||
| 8 | 155 | 0.133 | 34 | ||
| 10 | 100 | 28 | |||
| 15 | 45 | 18 | |||
| 20 | 25 | 14 | |||
| ACG20 | 20×32×10 | 5 | 505 | 65 | |
| 8 | 255 | 46 | |||
| 10 | 165 | 0.12 | 37 | ||
| 15 | 75 | 25 | |||
| 20 | 45 | 19 |
Note: Cores with other specification is available according to customer’s demand.
Company Profile
Shouke are focused on the energy efficiency, design and manufacture the high quality Fe-based amorphous core and nanocrystalline core, it widely used in High frequency transformer, High precision current transformer, EMC common mode filter, Magnetic amplifier, Pulse killer, Saturated inductor, Inverter reactor etc. Our product include Amorphous Materials, Nanocrystalline Materials, Nanocrystalline EMC Common Mode Choke Cores, Anti DC Hybrid Current Transformer Cores, Nanocrystalline Current Transformer Cores, Nanocrystalline Switching Hi-power Transformer Cores, Amorphous Filter Inductor Cores, Amorphous Toroidal Cut Cores, Amorphous Rectangular Cut Cores
We now sell the product to many small, medium transformer manufacturer and core maker worldwide from US, UK, Spanish, Russia, Korea, Japan, Taiwan, Singapore and India etc.
